Casemet Cubo F terminal enclosure - Versatile and Reliable
The Casemet standard enclosure series Cubo F terminal enclosures offer excellent protection for the connection of terminals and electrical components. Industrial environments demand high levels of protection against dust, dirt, moisture, chemicals, and vibrations. The strengths of the Cubo F enclosure lie in its high IP and IK ratings, compact size, and ease of handling. It is suitable for various industrial applications such as machine and equipment manufacturing, electrical and cable enclosures, automation systems, process industry, infrastructure construction, and the marine industry.

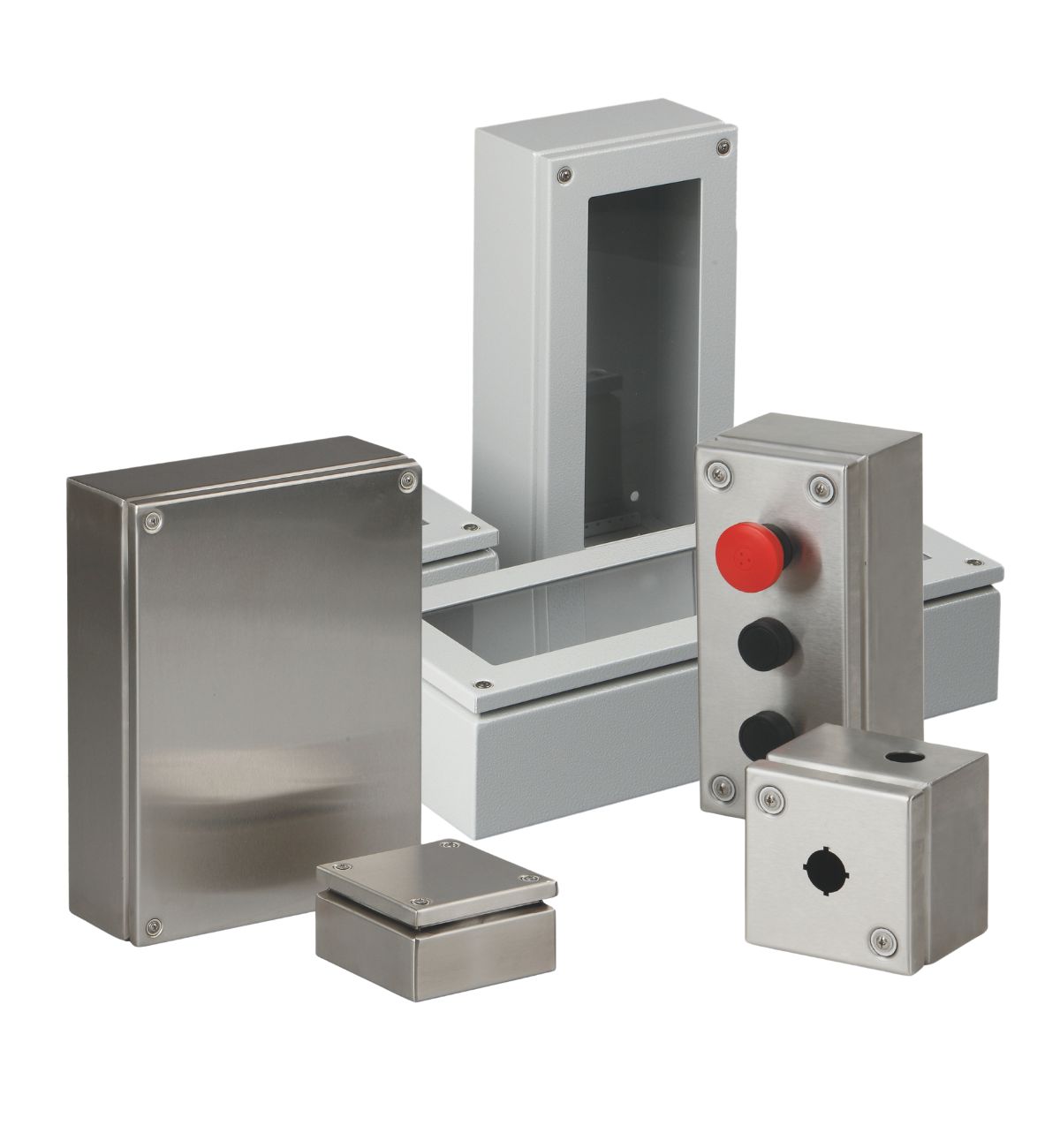

Cubo F enclosures:
- Sizes: 150 x 150 x 80 mm to 800 x 400 x 120 mm
- Protection class: IP66, IP65 with two cover screws
- Impact resistance: IK09 (-25 °C to +35 °C), window models IK07 (-5 °C to +80 °C)
- Material options:
- Polyester-painted steel
- Stainless steel AISI304
- Stainless steel AISI316L
- Standard enclosures with 120 mm depth are also available with flange openings or a polycarbonate window
- Available in 30 sizes and with two different base depths
- Push-button enclosures available in four sizes
- The enclosure features a perforated support for DIN rail or mounting plate, enabling the use of all sides of the enclosure for cable entries
- All models can be supplied with hinges
- Gasket: PUR (polyurethane)
- Cover screw gasket: Dryflex (SEBS)
Casemet Cubo F enclosures are available customized, with customer-specific dimensions and cut-outs. In addition, our services include electromechanical assembly.
Casemet Sales Manager Ari Yrjänäinen presents a painted Cubo F enclosure equipped with a polycarbonate window. "It’s also possible to add a silk screen print to the enclosure. Silk screen printing is a great way to mark the purpose or labeling of devices installed through the cut-outs. In this case, a product logo has been printed on the F enclosure," says Ari.
"The Cubo F enclosure is also available with a polycarbonate window, which allows visual inspection of components installed inside the enclosure – such as meters and indicator lights – while the enclosure remains closed. This helps avoid unnecessary opening of the enclosure in conditions where equipment could be damaged. Additionally, the F enclosure includes a dedicated series of push-button enclosures, providing solutions for various manually operated device switches. The high-quality material options further extend the enclosure’s service life. The versatility of the F enclosure ensures that we can always find the right solution for the customer’s specific needs," explains Ari Yrjänäinen, Sales Manager at Casemet Group.
Cubo F compliance:
Casemet's sales team helps customers choose the right enclosure solution and customization - always taking into account the customer's wishes and the requirements set by the operating and environmental conditions!
Ask our sales team for more information about our enclosure solutions and accessories:
